| SUPPORT STRUCTURE SUPPORT |
| Reticular tube structure. Light and strong |
| Tyres: 175.70.R13 (2) |
| Spare wheel (1) |
| Third wheel or Jockey for small movements and manoeuvrings (1) |
Shock absorber system independent for every wheel. Large distance covered and
variable flexibility. |
| Braking system with large section independent of vehicle carrying |
| Parking brake |
| Electric installation of lighting according EC directives |

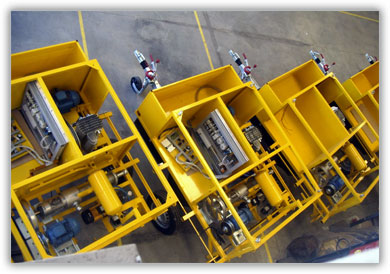

The machine is divided in individuals compartments which are separated between
themselves for distinguish every zone and for protect its inner elements |
Doors with double lock (with normal and safety lock) to access to every machine’s
compartments. (4) |
| Double door for electrical compartment |
| Big boxes locked in the front bottom part of machine to keep auxiliary and tools elements (2) |
| Front top box for spare tyre, hoses, etc (1) |
| Ringbolts to charge and lift the machine for crane lifting (4) |
| MATERIALES AND FINISHES |
Stainless steel: In every element that have to support water, chemical additive
and general contacts with strong level of corrosion |
High resistance aluminium: In every part or element that needs be lighter.
It reduces total weight in the equipment at this form |
Tubular structure in steel. Anticorrosion treatment: Degreasing, phosphating, drying and oven
dry painting. Yellow color RAL 1003. With all this it obtains a long life and resistance in the
presence of extern agents: sun, rain, dust, water, wind, etc. |
| MECHANICAL ELEMENTS |
| Cellular concrete pump |
DGF type special for grouts. Maximum pressure 25 bar.
Limited in the machine of 14 bar. With flow regulator. |
|
| Water dosing pump |
Manufacture in stainless steel. Controlled by microprocessor
from electric switchboard. View in LCD screen. |
|
Chemical additive
dosing pump |
Manufacture in special polymers for chemical additive.
Controled by same microprocessor and screen tan water pump. |
|
| Air compressor |
15 bar of pressure. Limited in the machine up 10,5 bar. Regulation from switchboard. Work pressure with automatic regulation. |
|
| Mixing |
Manufacture in stainless steel. 500 l of capacity. Produce homogeneous grouts without lumps and a little quantity of water; R: 600/100 |
|
| MECHANICAL PROTECTION ELEMENTS |
| Clearer filter air compressor |
| Protector filter water pump |
| Protector filter additive pump |
| Protector grid cellular concrete grid |
| MECHANICAL SAFETY ELEMENTS |
| Unload valve compressed air |
| Safety vale air tank |
| Safety valve compressor |
| Antireturn valve of grout to pump |
| Double antireturn valve of grout to pump |
| ELECTRICAL SAFETY ELEMENTS |
| Protection against grounded leak current (30 mA) |
| Protection against short circuiting on all lines |
| Engines overload protection |
| Low voltage operational and marking: 24 V |
| Protection against incorrect rotation of engines |
| Protection against phase failure in main supply line |
| General electric broke lock |
| Emergency stop push |
| REGULATION AND SIGNALLING ELEMENTS |
| Regulator of air flow (in switchboard) |
| Dispenser of water in LCD screen (Programming of 1 by 1 l.) |
| Dispenser of chemical additive in LCD screen (Reg. 10 ml) |
| Regulator of pumping flow |
| Voltage signalling (220-380V) |
| Incorrect rotation engines signalling |
| Phase failure signalling |
| Engines run function signalling |
| Engines overload signalling |
| Chemical additive finished acoustic signalling |
| Pumping pressure manometer |
| ACTIVATION ELEMENTS |
| Compressor stop-run push lock |
| C.C. pump stop-run push lock |
| Mixer stop- run push lock |
| Additive pump stop- automatic selector |
